Among prominent challenges of Steel design is the design of column anchors. The axialcompression, Uplift, Shear and the overturning moment all require the best of structural engineering.
The differences in ASD and LRFD technique design for both composite and non composite steel beams is another significant design area.
For mid rise homes in the wind and low seismic zones, staggared steel Truss design is an area of design which requires diaphragm action using hollow-core precast plank floor slabs and the design of truss members.
For these and other challenging structural steel design, our team references the AISC’s Design Guide and AISC Manual for an accurate design.

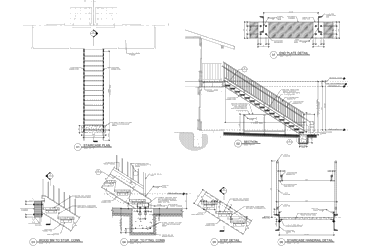

Our team is capable of design of steel structures such as steel staircase, handrail design, ladders &canopies along with their foundation & connections design.
We provide Miscellaneous Steel Engineering including load analysis for gravity, wind and seismic analysis using governing code. We analyse, calculate and model tension build ups in load bearing members.
We also do a lot of connection designs for steel staircases, guard rails, steel fences and steel detailing work.
We design Steel Connections for Staircases, Welded and Seated Connections, Base Plates. We also analyse and design Steel Beams, Steel Trusses for Roof design
For Steel structures and connections design, we use International Building Code IBC and IRC, which in its latest versions, incorporates standards recommended by AISC.
Most of our scope of work falls within the IBC and IRC for Steel structures. The need for International Green Construction Code (IgCC), ASHRAE 189.1, and the National Green Building Standard (ICC-700) comes into picture for large projects,
We refer to ASCE 7-10 for Wind loads and Calculations for Wind zone categories A, B and C. SEI/ASCE 7, Minimum Design Loads for Buildings and Other Structures
We Use AISC 341, Seismic Provisions for Structural Steel Buildings; AISC 360, Specification for Structural Steel Buildings;
We use Staad Pro, Enercalc and Hilti Profis-Anchor for steel design purpose.
Our team heavily uses AutoCAD whether for drawing structural plans. The ability to clearly draw plans along with sections is unmatched in AutoCAD.
For Analysis, Design and Calculations for steel structures we use ETABS and ENERCALC software. They also generate quick custom reports.

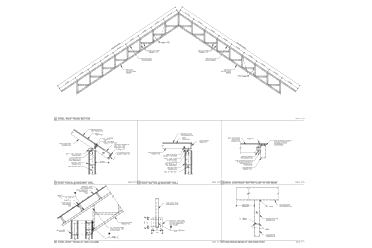

We use STAAD Pro for wind analysis in zone A, B and C, especially while designing steel roof trusses for residential and industrial projects.
Multipurpose CAD Design & Drafting.
For Steel 3D Model & Structural Detailing.
For Low to midrise Steel Structures design
Analysis & Modeling High rise Steel structures.
